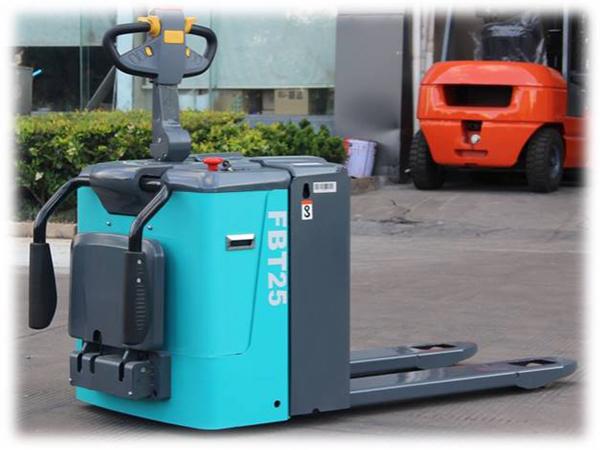

2-2.5t Electric Pallet Truck

2-2.5t electric pallet truck is designed for heavy-duty loads.
This truck is equipped with turning and decelerating system and travel speed will be slower when the handle angle exceeds 15°. CVT is applied in lift and travel speed.
In additon, this truck has a height limiter for safe lifting. all the microswitchs and connectors are waterproof for increased safety.

Details

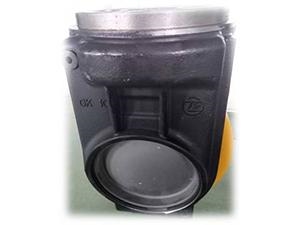

• Gearbox
  Reliable, durable and high quality

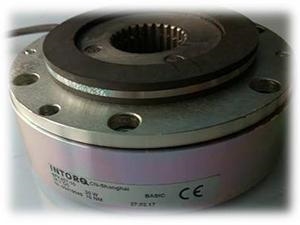

• INTORQ
  Convenient, safe and reliable

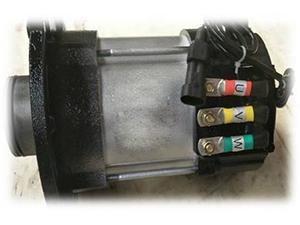

• AC traction motor
  Efficient, durable and maintenance-free

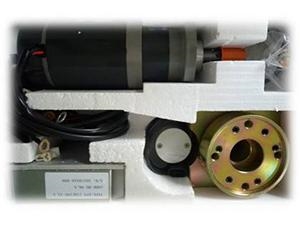

• EPS system
  portable, noiseless and accurate

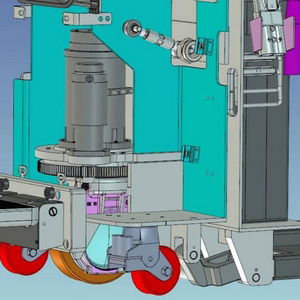

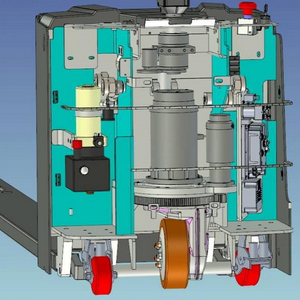

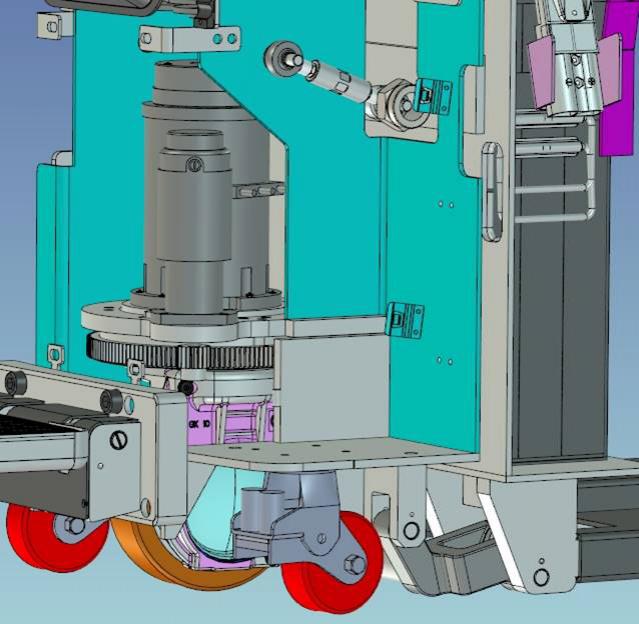

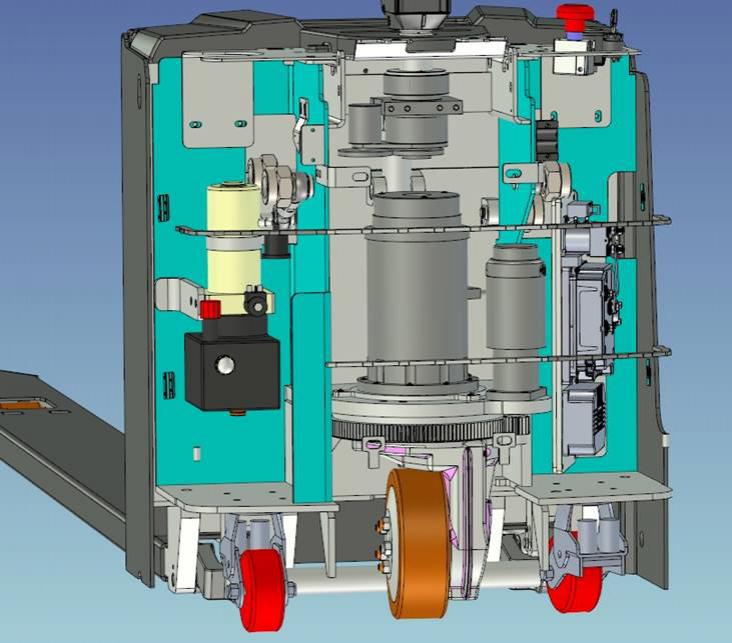

Structure Diagram

•

•

Technical Parameters

Model				FBD20	FBT25
Operation Type				Stand-on	Stand-on
Load Capacity			kg	2000	2500
Load Centre		C	mm	600	600
Service Weight（with battery）			kg	655	684
Tyre Material				Polyurethane（PU）	Polyurethane（PU）
Tyre Drive Wheel/Load Wheel/Balance Wheel			mm	Ø230*70/Ø80*70/Ø100*50
Wheelbase		L1	mm	1366	1366
Fork Size	L×W×T	L4XWXT	mm	1150X185X60	1150X185X60
Width over forks(outside)		W5	mm	540/560//685	540/560//685
Min. Ground Clearance(forks)		H3	mm	85	85
Min. Turning Radius		Wa	mm	1663	1663
Min. Ground Clearance		H5	mm	25	25
Min. Aisle width for Pallets 1000X1200		RASA	mm	2520	2520
Max. Travel Speed(Full load/Empty load)			km/h	6/5.5	6/5.5
Max. Lifting Speed(Full load/Empty load)			mm/s	35/40	35/40
Max. Lowering Speed（Full load/Empty load）			mm/s	40/35	40/35
Max. Gradeability(Full load/Empty load)			%	8/15	8/15
Braking System				Electromagnetic	Electromagnetic
Battery (Voltage/Capacity)			V/Ah	24V/180Ah	24V/210Ah
Motor power	Travel(Drive motor)		Kw	1.5	1.5
	Lifting(Lift motor)		Kw	2.2	2.2
	Steering motor		Kw	0.2	0.2
