Electric Stacker

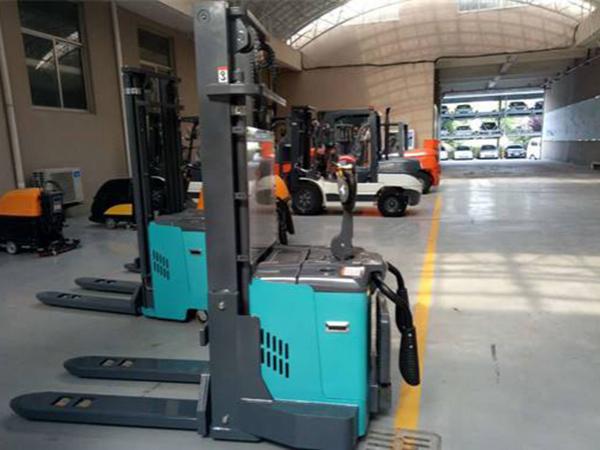

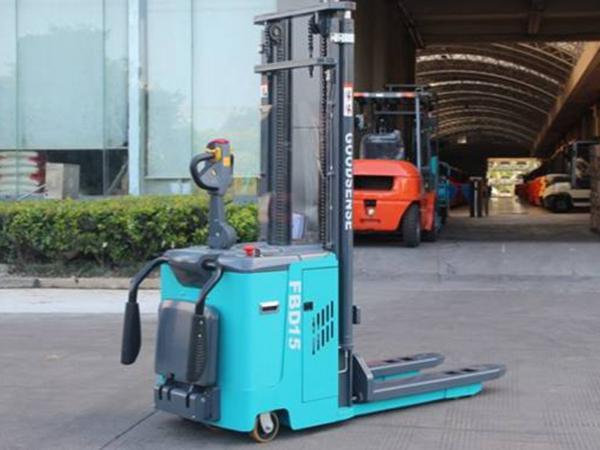

Electric stacker is a electric powered short stack equipment. Its efficiency can be maximized when used with pallet.
GOODSENSE electric stacker is suited to working in solid, even roads and its maximum full load gradeability is 6-8%. We offer 4 types of stacker masts for your choice.
We also have 1.5-2.0 t electric stacker and offer customized service to cater to your specific task needs.

Details

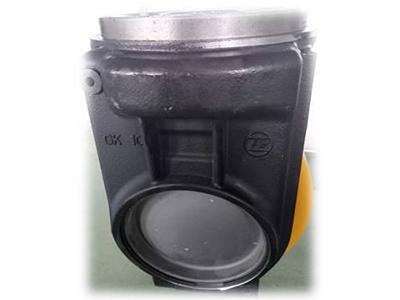

ZFGearbox
Reliable, durable and high quality

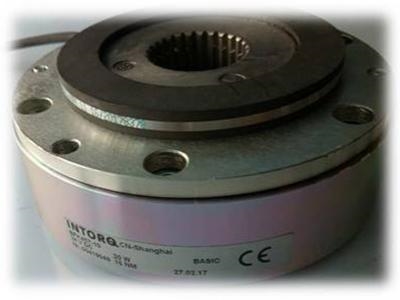

INTORQ
Convenient, safe and reliable

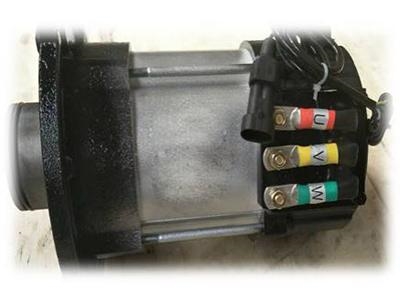

AC traction motor
Efficient, durable and maintenance-free

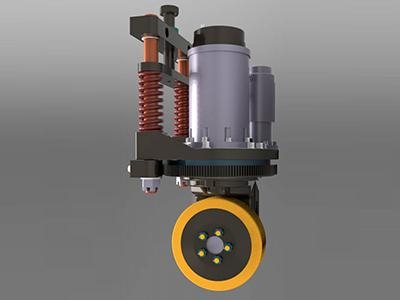

Drive System
Verticle AC motor is efficient, durable and maintenance-free with good heat dissipation

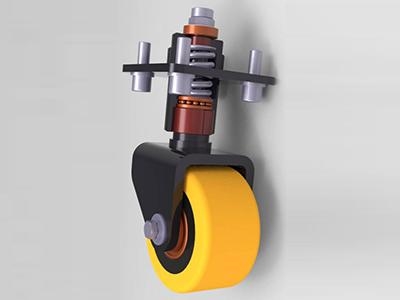

Balance Wheel
Distinctive compressed spring is designed for stable operation.

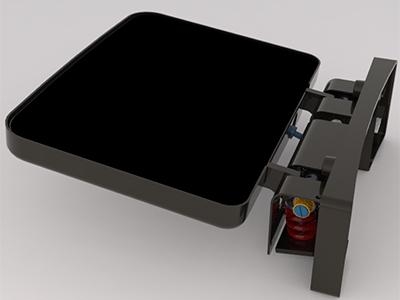

Folding Pedal
Folding pedal's gas spring is easy to use and space-saving.

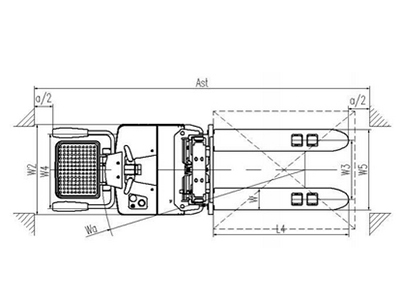

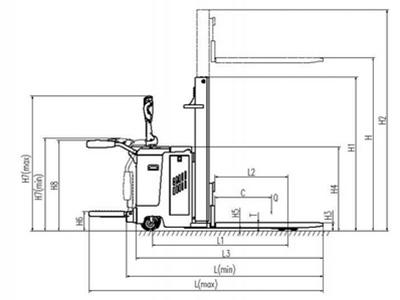

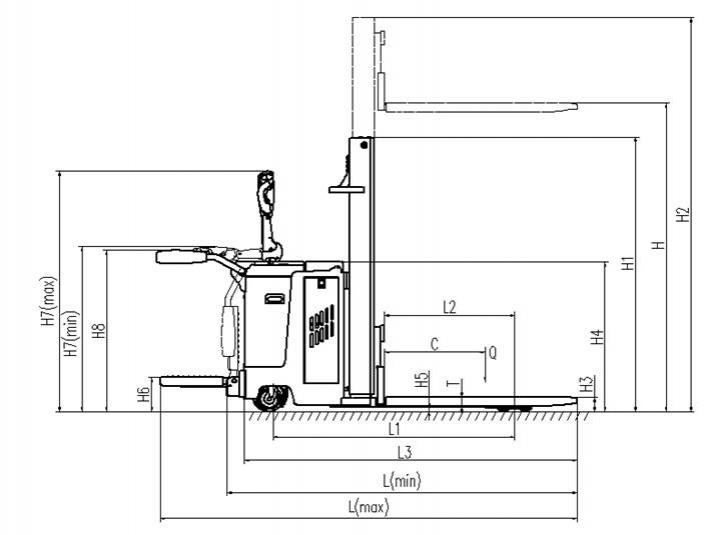

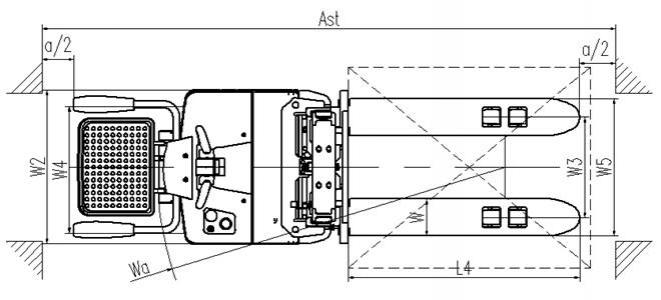

Contour

Technical Parameters

Model				FBD15	FBD16	FBD18	FBD20
Operation Type				Stand-on
Load Capacity			kg	1500	1600	1800	2000
Load Centre		C	mm	600
Service Weight（with battery）			kg	1184	1210	1362	1386
Tyre Material				Polyurethane（PU）
Tyre Drive Wheel/Load Wheel/Balance Wheel				Ø23070/Ø8070/Ø100*50
Wheelbase		L1	mm	1478		1485
Fork Size	L×W×T	L4XWXT	mm	1150X185X55		1150X180X66
Width over forks(outside)		W5	mm	570/685
Min. Ground Clearance(forks)		H3	mm	85
Min. Turning Radius		Wa	mm	1644		1726
Min. Ground Clearance		H5	mm	27
Min. Aisle width for Pallets 1000X1200		RASA	mm	2700		2785
Min. Aisle width for Pallets 800X1000		RASA	mm	2580		2665
Max. Travel Speed(Full load/Empty load)			km/h	6/5.5
Max. Lifting Speed(Full load/Empty load)			mm/s	87/120	83/115	110/90	115/85
Max. Lowering Speed（Full load/Empty load）			mm/s	145/105	140/105	120/107	125/107
Max. Gradeability(Full load/Empty load)			%	6/10		6/8
Braking System				Electromagnetic
Battery (Voltage/Capacity)			V/Ah	24V/180Ah	24V/210Ah	24V/240Ah	24V/270Ah
Motor power	Travel(Drive motor)		Kw	1.5
	Lifting(Lift motor)		Kw	2.2		3
	Steering motor		Kw	0.2
